Introducing the next step in the evolution of the M-Series from Scansonic

Introducing the next step in the evolution of the M-Series from Scansonic

With the introduction of the new M-Series from Scansonic HD, new materials and designs has been incorporated in the well-known M-Series. A new and different driver design, to reassure an even lower level of distortion has been developed for this new series that includes three different speaker models. This is the next and natural step in the evolution of the M-Series.

The M-10, M-20, and the M-40 are all using the same ribbon tweeter that ScansonicHD introduced in the exclusive MB-series a few years ago. A high-resolution ribbon tweeter which is chosen for its musicality and extreme frequency response and not at least for blending seamlessly with the 4” honeycomb enforced glass-fiber bass/midrange drivers.

The M-10, M-20 and M-40 are all using a single or multiple 4” bass/midrange drivers, with a honeycomb enforced glass-fiber design of the actual membrane. This technology in combination with a powerful magnet-system delivers an open and extremely detailed sound. A driver which is capable of being integrated in a speaker design with a ribbon tweeter due to its speed and wide frequency response.

The new M-series is all about the music!

The M-Series are available in satin black or satin white.

Supplied with a removable, protective front-grill and adjustable feet.

Designed in Denmark

Recommended Retail Prices:

M-10 (without stand): 649 EUR/800 USD

M-20: 1.499 EUR/1.800 USD

M-40: 1.999 EUR/2.400 USD

Please visit www.scansonichd.dk

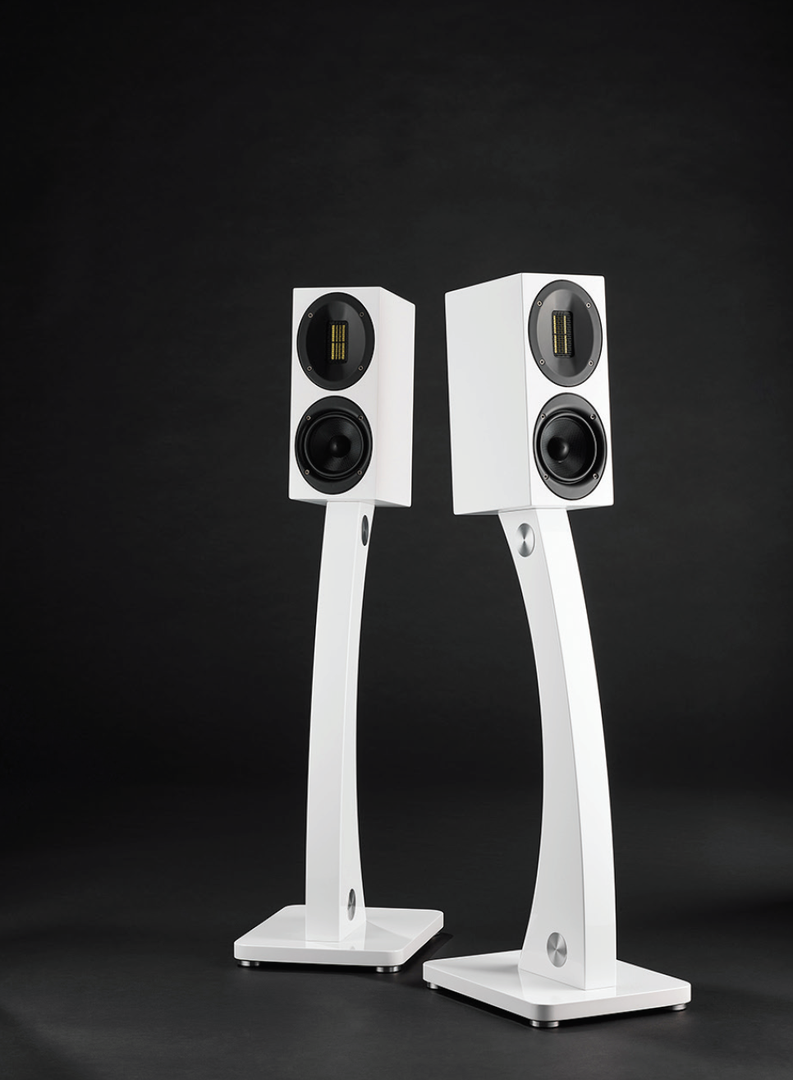

M-10

Compact two-way mini-monitor.

Technical Information

• Size: (WxHxD) 130 x 303 x 196 mm

• Weight: 4 kg

• Freq. response: 70 Hz – 40 KHz

• Impedance: 6 ohm

• Crossover: 4 KHz 2. Order

• Principle: 2 -Way bass-reflex loaded

• Sensitivity: 85dB

• Enclosure: Heavily braced, rear firing ports.

• Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane. 1 Mid/woofer 4”, Honeycomb enforced glass-fiber cone.

• Finish: Silk White or Silk Black

• Amplification: We recommend high quality

• 50 – 100 W amplifiers



M-20

Compact and elegant 2.5-way, floor-standing speaker.

Technical Information

• Size: (WxHxD) 220 x 935 x 250 mm

• Weight: 12.1 kg

• Freq. response: 50 Hz – 40 KHz

• Impedance: 4 ohm

• Crossover: 4 KHz 2.Order

• 300 Hz1. order

• Principle: 2.5 -Way bass-reflex loaded

• Sensitivity: 86.5dB

• Enclosure: Heavily braced, rear firing ports.

• Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane. 1 Mid/woofer 4”, Phase-plug + Honeycomb enforced glass-fiber cone. 1 Woofers 4”, Honeycomb enforced glass-fiber cone.

• Finish: Silk White or Silk Black

• Amplification: We recommend high quality

• 100 – 200 W amplifiers

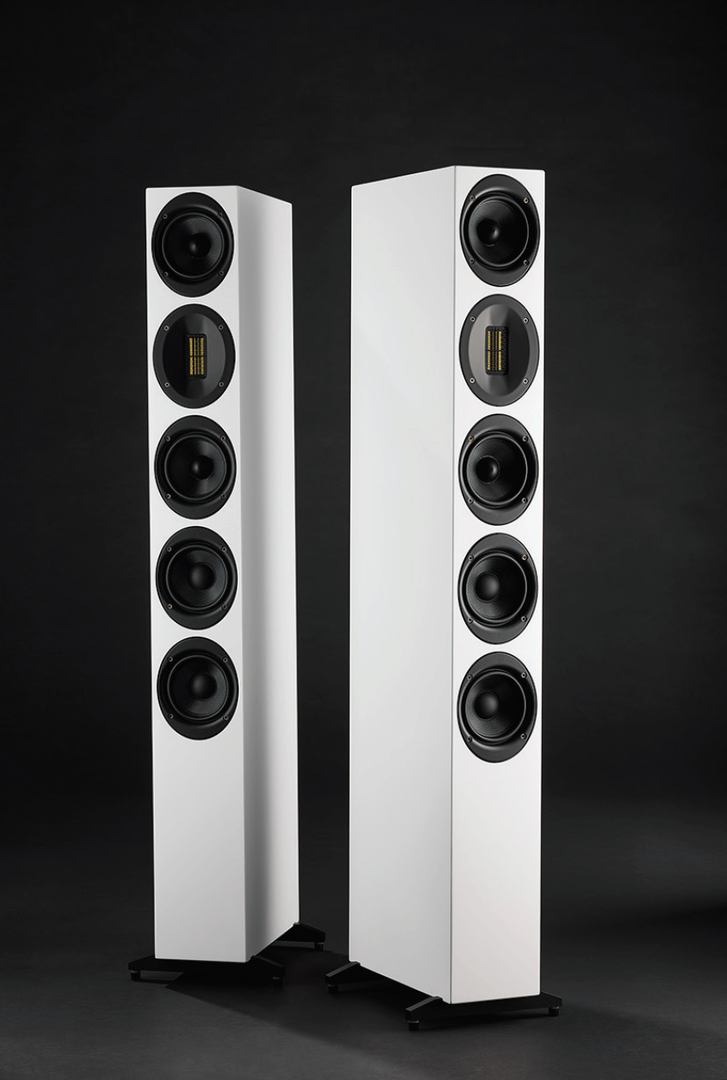

M-40

Powerful and elegant 2.5-way, floor-standing speaker

Technical Information

• Size: (WxHxD) 220 x 1085 x 295 mm

• Weight: 18 kg

• Freq. response: 45 Hz – 40 KHz

• Impedance: 6 ohm

• Crossover: 4 KHz 2. Order 300 Hz1. order

• Principle: 2.5 Way bass-reflex loaded

• Sensitivity: 88 dB

• Enclosure: Heavily braced, ported design, rear firing ports.

• Drive units: 1 sealed ribbon tweeter with kapton/aluminum sandwich membrane. 2 Mid/woofer 4”, Phase-plug + Honeycomb enforced glass-fiber cone. 4 Woofers 4”, Honeycomb enforced glass-fiber cone.

• Finish: Silk White or Silk Black

• Amplification: We recommend high quality

• 100 – 300 W amplifiers
